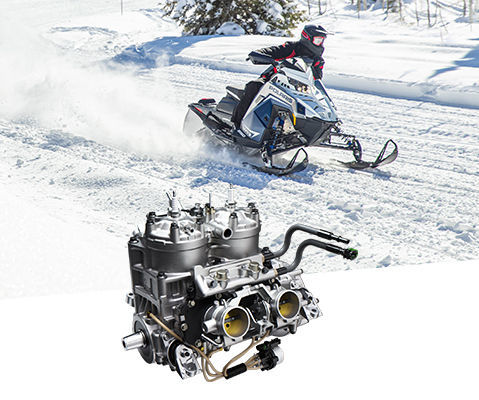

Designed for Durability & Power
World-class durability with class-leading power and Polaris' renowned responsiveness.
- Real-world performance and reliability based on 25 years of Liberty® engine experience

New Piston
Optimized for reliability and durability.
- +8mm compression height
- +3mm thicker dome
- More contact area with cylinder bore to improve heat transfer
- PVD-coated steel single-ring design
- High-capacity wrist pin

New Lightweight Crankshaft
All-new design is strong and stiff while maintaining low inertia.
- Larger clutch taper design for durability and serviceability
- High capacity bearing and pin design
- Separate crankpins feature high grade steel
- Symmetrical press fit webs for improved straightness

New Cylinder & Cylinder Head
All-new design optimized for maximum durability.
- Advanced Cooling System based on Computational Fluid Dynamics which results in consistent flow velocities
- 6-bolt cylinder structure optimized through Finite Element Analysis and features a patent-pending exhaust port design
- One-piece head design allows for structural rigidity, engineered coolant flow, and optimized weight
- Patent-pending combustion chamber design allows for complete combustion and ultimate performance through entire operating range

New Water Bottle with Integrated Thermostat
All-new design maximizes durability and cooling efficiency.
- Patent-pending simplified coolant bottle design minimizes vibration and maximizes thermostat life
- Self-bleeding cooling system
- 100 degree T-stat
- Integrated by-pass for fast warm-up

New Engine Mounting
Seamlessly integrates into 2019 AXYS platform.
- Minimizes vibration transmitted to rider
- Provides more consistent center distance to maximize belt life

New Throttle Body & Throttle Position Sensor
Features a lightweight, simple, durable design.
- Contact-less TPS for reliable, consistent performance
- Permanent set - no adjustment required

Powertrain Controls
- Power Boosting Regulator for quicker starting; delivers maximum electrical power at Idle/Low RPM
- Electrical ECU with faster processor, exhaust valve control integration, and greater input/outputa

New 3-Stage E-VES-II Exhaust Valve System
- Simplified coplanar valve with fewer parts and EV base that is lightweight, die-cast magnesium
- Improved fit and sealing to piston and exhaust ports to control exhaust flow and optimize performance
- Optimized water jacket and valve cooling
- Integrated cooling with no external lines

Premium, Integrated Design & Components
- New exhaust system - pipe and resonator - improves flow and sound quality; EGT in full heat-shielded resonator improves calibration control
- New wire harness routing for reliability and serviceability
- Industry-exclusive, patent-pending fuel system temp and pressure sensor optimizes piston durability, increases control of fueling variability, improves starting in all conditions, improves diagnostic functionality for easier serviceability, and enhances engine protection modes in the case of low fuel pressure
- New belt drive designed specifically for the 850 Patriot is optimized for durability and longevity
- New VForce® reeds designed specifically for the 850 Patriot feature carbon fiber petals for ultimate performance, and industry-exclusive secondary seal on the inner cage for maximum durability

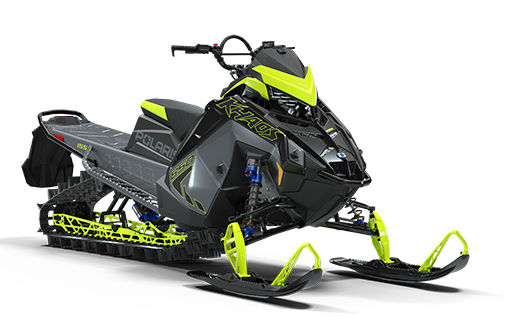

RMK
The World’s Best Mountain Sled.

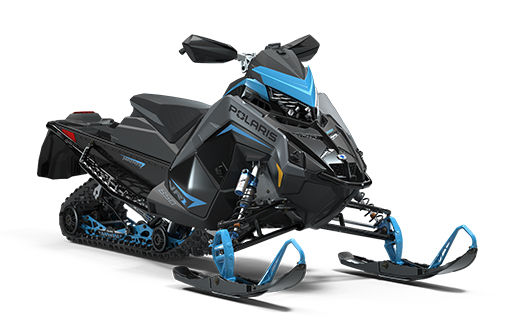

INDY
